Waste Water Pumps - MS & MP Series

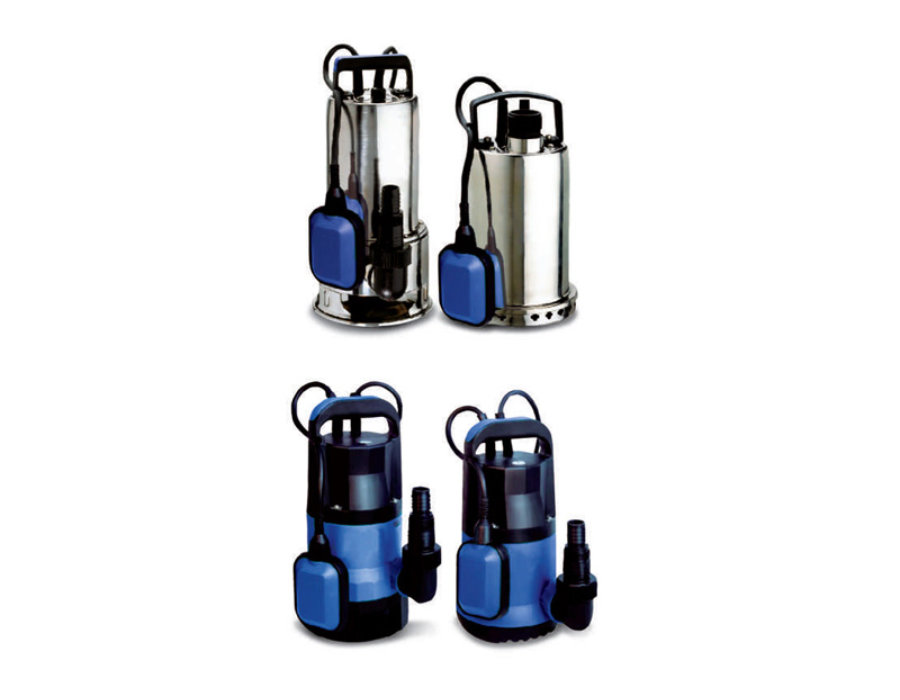

MS & MP Series

Description

Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life.

Specification
Maximum Flow to 53gpm
Head to 34ft
Speed 3450 RPM
Impeller Type Semi Open Impeller
Outlet Size to 1½”
Power to 1.2HP
Liquid Temperature to 104°F
Max Solid Size to 1″
Shaft Seal Mechanical Seal
Material of Construction (MOC) Engineering Thermoplastic
Bearing Lubrication Grease
Maximum Immersion Depth 16ft
Maximum Working Pressure to 1 bar
Features
  • Heavy duty bearings
  • Compact and rigid design
  • Rust free engineering thermoplastic
Application
  • Draining sewage water from hotels, houses, commercial buildings etc.
  • Pumping sewage water from stock farm and manhole sewer
