Automatic Pressure Booster Systems

Home > 60 HZ > Centrifugal Monoblock Pumps > Automatic Pressure Booster Systems
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & condition and privacy policy
  • This field is for validation purposes and should be left unchanged.

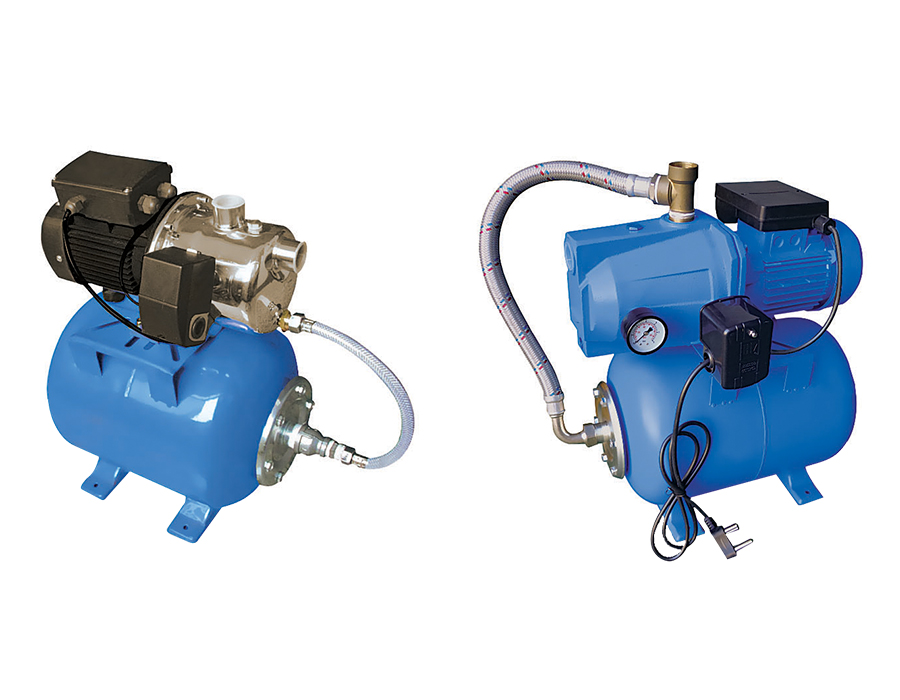

Automatic Pressure Booster Systems

Description

C.R.I. automatic pressure booster system comprises of Self priming Jet pump (JTS / JTB – Series), Pressure tank, Pressure switch & other accessories designed Indigenously for delivering optimal performance. This system eliminates the need of over-head tank & float switch. The electro mechanical control device switches ON & OFF the pump automatically whenever the pressure reaches the minimum and maximum preset levels. It maintains uniform pressurized water in the pipelines to meet the demand.

Specification
Power Range in HP 0.5 – 1HP
Speed 3450
Versions Single phase – 115 & 230V, 60Hz , A.C. Supply
Three phase – 230,380 & 460V, 60Hz A.C. supply
Type of Duty S1 Continuous Duty
Degree of Protection IP 55
Class of Insulation     B/F
Maximum Discharge Upto 14 gpm
Maximum Head Upto 110 ft
Max.Suction Lift 23 ft
Sealing Type Mechanical seal
Max.Liquid Temperature Upto 86°F
Max.Ambient Temperature Upto 104°F
Max.Opearting Pressure upto 3.3bar
Flange Standard Manufacturer Standard
Suction Flange Size 1″
Delivery Flange Size 1″
Features
  • High efficiency
  • Compact and rigid construction
  • Back pull out design
  • Single phase pumps are thermally protected
Application
  • Residence
  • Pressure boosting system
  • RO Systems
  • Cooling system
  • Washing systems
  • Utility application in industries and buildings
Literature
E-catalogue
