MC Series

Ana Sayfa > 50 Hz > Waste Water Pumps > MC Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

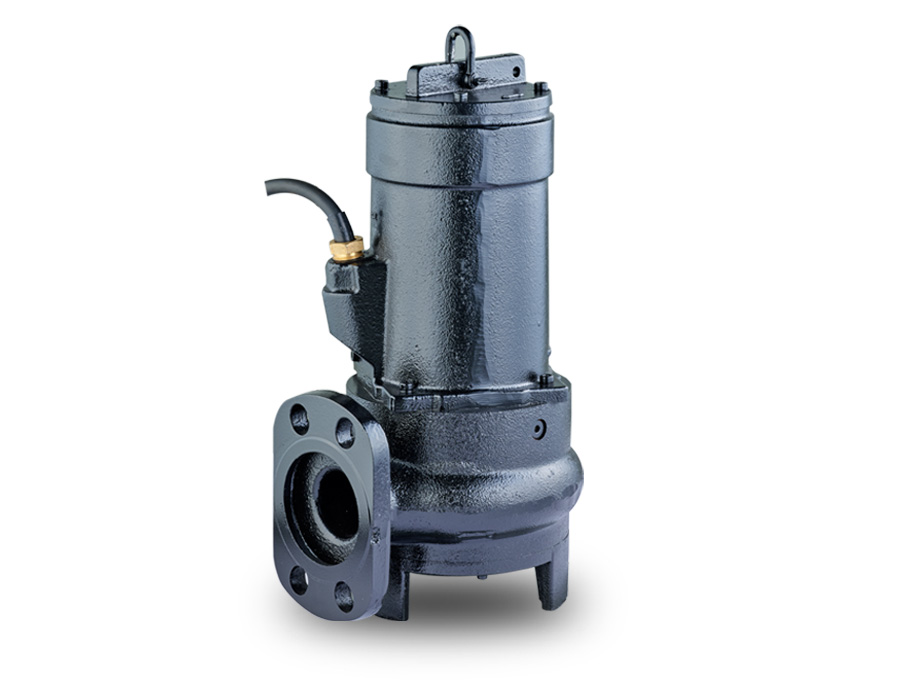

MC Series

Description

MC series reliable and highly efficient pumps have been designed for pumping of municipal and industrial wastewater, raw water, storm water, sewage and sludges etc. A single channel closed impeller design that offers reliability against clogging and good resistance to wear. It can handle the solids upto 4” in diameter.

Specification
Maximum Flow upto 504m³/h
Head upto 65m
Speed 1450/2900 RPM

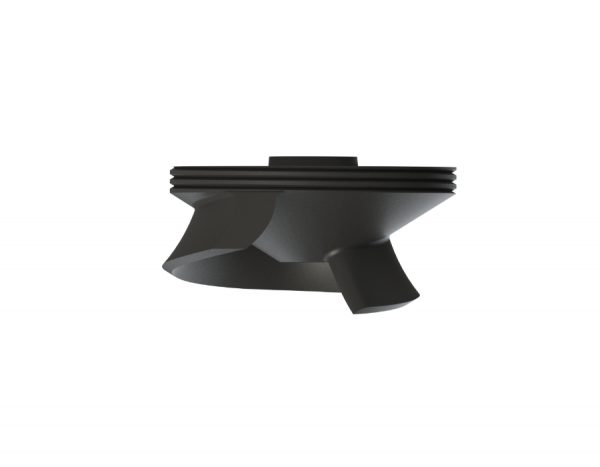

Impeller Type Mono channel Impeller
Outlet Size upto 150mm
Power upto 34kW
Liquid Temperature upto 40°C
Max Solid Size upto 90mm
Shaft Seal Mechanical seal
Material of Construction (MOC) CI with 0.3% Cu, Ni and Mo
Bearing Lubrication Grease
Maximum Immersion Depth 20m
Maximum Working Pressure upto 6.5bar
Features
  • Large free passage
  • Non clog single channel enclosed impeller
  • Inbuilt thermal protection and moisture sensor in specific ranges
Application
  • For pumping sewage and waste water, rain and storm water and industrial waste water
Literature
E-catalogue
