MA Series

Description

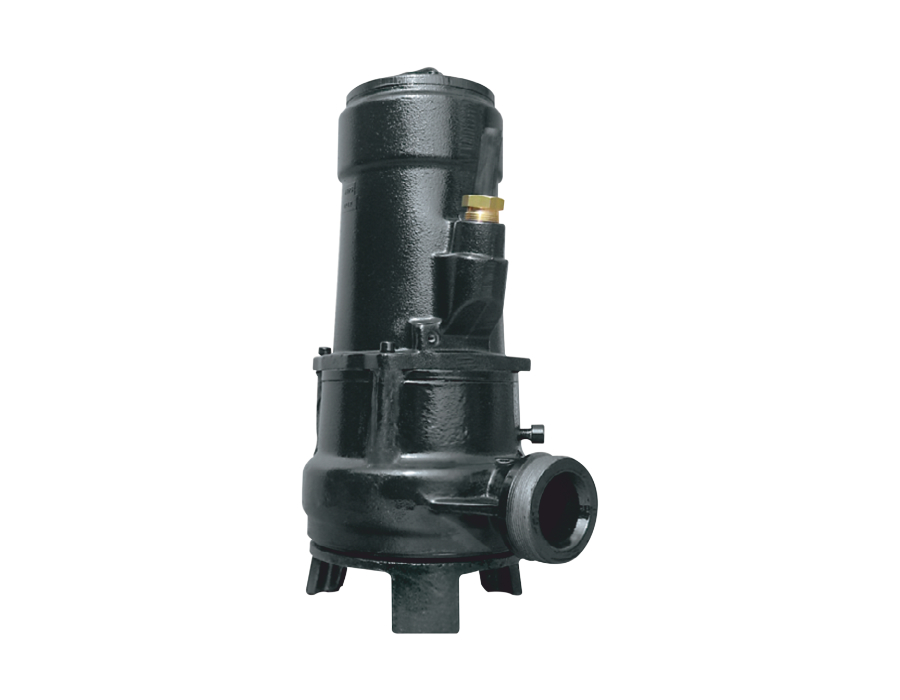

MA series submersible sewage pumps are supplied with semi open single channel impeller for handling fibrous material without clogging. It can handle the solids upto 1½” in diameter. These pumps are suitable for pumping municipal wastewater, industrial waste water, land fill waste water, rain water and activated sludge.

Specification

Maximum Flow	upto 36m³/h
Head	upto 25m
Speed	2850 RPM
Impeller Type	Semi open single channel impeller
Outlet Size	50mm
Power	upto 2.6kW
Liquid Temperature	upto 40°C
Max Solid Size	40mm
Shaft Seal	Mechanical seal
Material of Construction (MOC)	CI with 0.3% Cu, Ni and Mo, Stainless steel
Bearing Lubrication	Grease
Maximum Immersion Depth	20m
Maximum Working Pressure	upto 2.5bar

Features

Single channel semi open impeller
Adjusting base for maintaining impeller clearance
Inbuilt thermal overload protector in specific ranges

Application

For pumping sewage and waste water with slight impurities, raw water, landfill water and rain water
