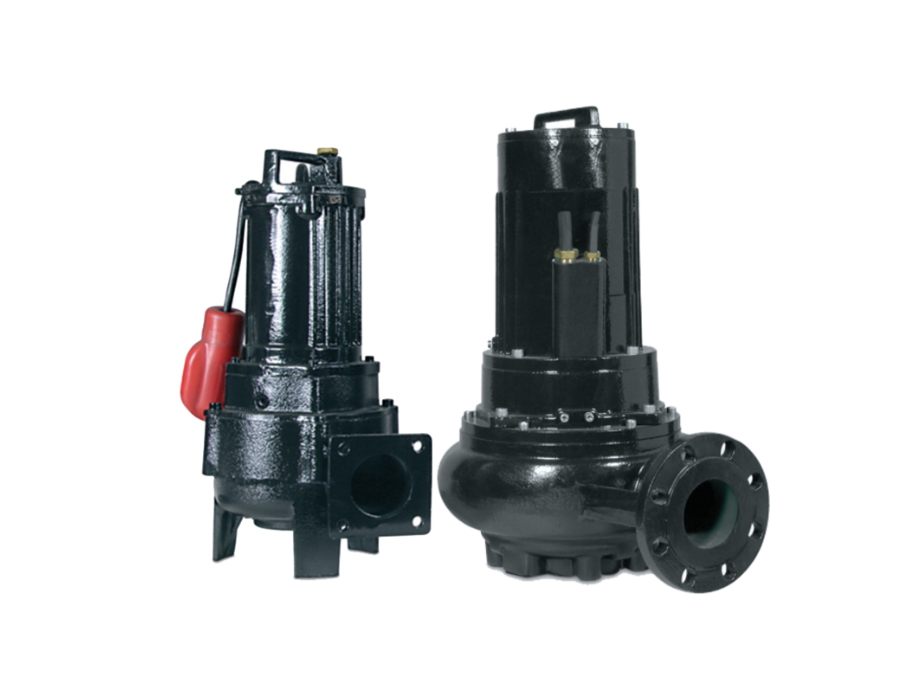

GA / GB series

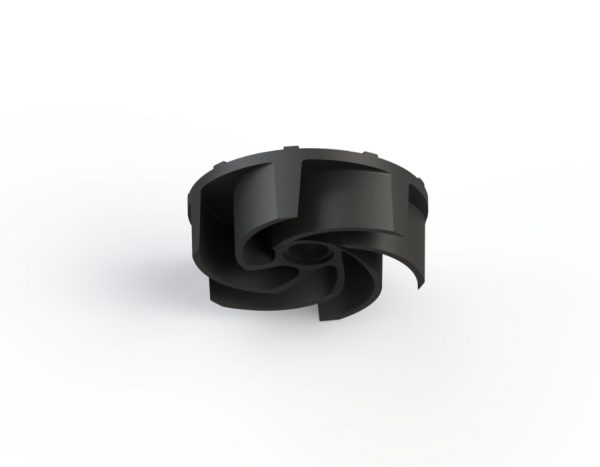

GA / GB Series pumps are equipped with vortex impeller. The benefit of a vortex impeller over a channel impeller is the minimized risk of clogging. A vortex impeller is also a better choice and pumped liquid has a high content of sand. These pumps have large free passage up to 3½” in diameter suitable for lifting of sewage liquid, civil waste and industrial waste water containing solids and viscos materials, heavy muds or fermented sludge.
| Maximum Flow | upto 216m³/h |
| Head | upto 65m |
| Speed | 1450/2900 RPM |
| Impeller Type | Vortex |
| Outlet Size | upto 100mm |
| Power | upto 50kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 90mm |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | CI with 0.3% Cu, Ni and Mo |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 20m |
| Maximum working Pressure | upto 6.5bar |
- Minimized risk of clogging & minimum wear and tear
- Large free passage
- Thermal protection and moisture sensor in specific ranges
- For pumping sewage water, civil waste and industrial waste water containing solids and viscous materials, heavy muds, raw or fermented sludge
