ECC Series

Home > 50 Hz > End Suction Pumps > ECC Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

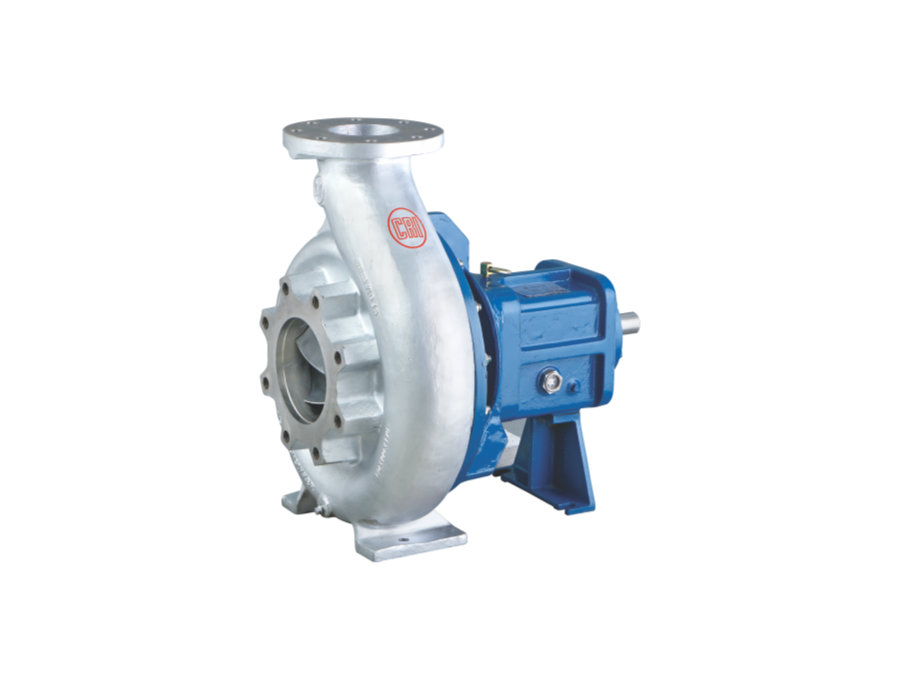

ECC Series

Description

Single stage chemical process pumps are mainly used to handle different type of chemicals with slight impurities. These pumps are offered with different material of construction according to the liquid type. Dynamically balanced impeller ensures vibration and noise free operation for long life. Mounting and duties are in accordance with ANSI B73.1 suitable for continuous operation. To maintain impeller clearance external adjustment provision is provided to maintain required efficiency.

Specification
Standard ANSI B73.1
Head upto 110m
Maximum Flow upto 720m³/h
Speed 970/1450/2900 RPM
Impeller Type Semi Open Impeller
Outlet Size upto 200mm
Power upto 150kW
Liquid Temperature upto 260°C
Maximum Suspended Solid Size upto 52mm
Shaft Seal Gland Packing,
Mechanical Seal
Material of Construction (MOC) Stainless Steel and Alloy steel
Bearing Lubrication Oil
Flange Standard ASME 16.5 Class 150
Maximum working Pressure upto 16 bar
Features
  • Back pull out design
  • High efficiency & optimized performance reduces the operating cost
  • Mounting dimensions and duties as per ANSI 73.1 Standard
  • Heavy Duty bearing ensures long life
Application
  • Organic and inorganic chemical transfer
  • High temperature chemical transfer
  • Refined product and syrup transfer
  • Solvent and alcohol transfer
Literature
E-catalogue
