ECP Series

Home > 50 Hz > End Suction Pumps > ECP Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

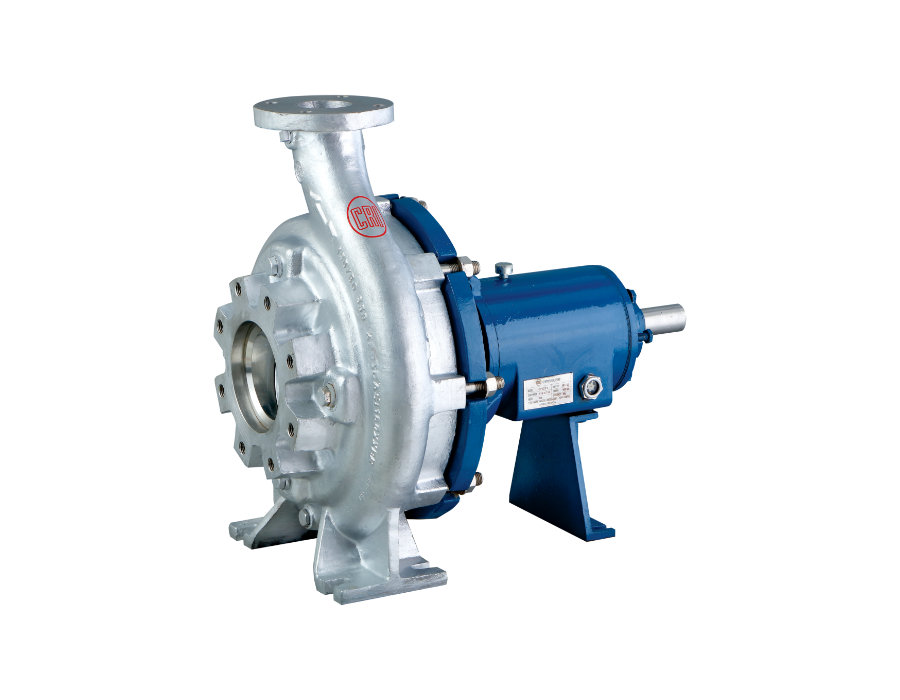

ECP Series

Description

Medium consistency pulp and process pumps are used to handle different type of syrup, molasses, pulp, paper stock, raw water etc and it can be used maximum consistencies upto 8%. Dynamically balanced semi open impeller ensures vibration and noise free operation for long life and replaceable wear plate used to maintain optimum clearance between impeller and wear plate. To maintain impeller clearance external adjustment provision is provided to maintain required efficiency.

Specification
Standard Manufacturer Standard
Head upto 100m
Maximum Flow upto 2500m³/h
Speed 720/970/1450RPM
Impeller Type Semi Open Impeller
Outlet Size upto 350mm
Power upto 315kW
Liquid Temperature upto 90°C
Max Solid Size upto 95mm
Shaft Seal Gland Packing,
Mechanical Seal
Material of Construction (MOC) Cast Iron, Stainless Steel & Alloy Steel
Bearing Lubrication Oil
Flange Standard ASME 16.5 Class 150
Maximum working Pressure upto 16 bar
Features
  • Back pull out design
  • High efficiency
  • Non clog semi open impeller with bull nose ensures smooth entry of liquid with fibrous Solids
  • Handle consistencies upto 8%
  • External Impeller adjustments to maintain Optimum Hydraulic Performance
Application
  • Paper stock & fibrous pulp
  • White, black & green liquors
  • Handling food pulp
  • Non API 610 chemical, process & fibrous effluents
  • Low density slurry & sludge
Literature
E-catalogue
