BS Series

Home >  50 Hz >  Bottom Suction Pumps >  BS Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

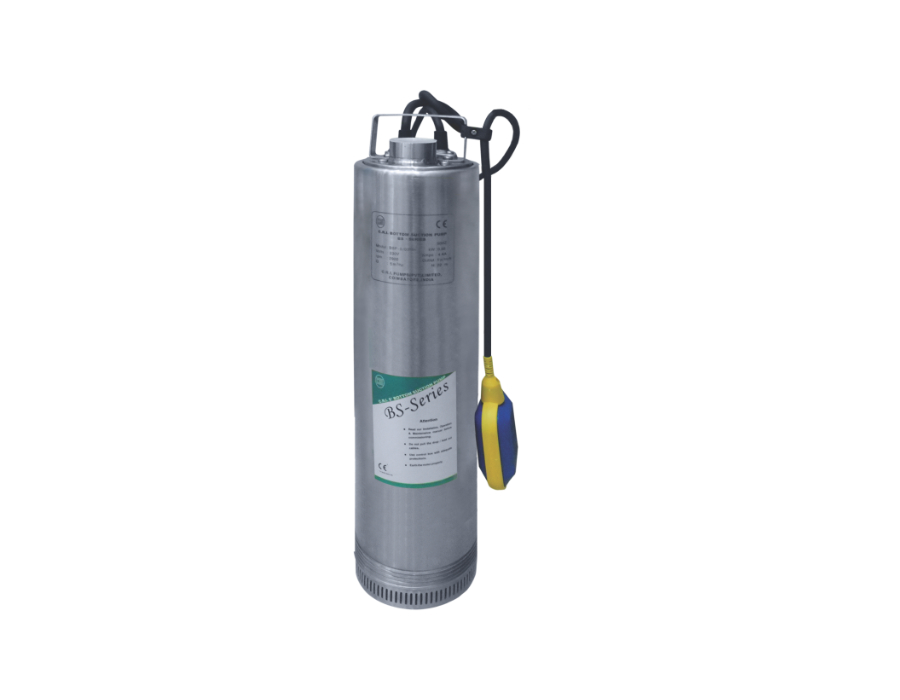

BS Series

Description

C.R.I. BS Series Bottom Suction pumps are multistage type supplied with engineering thermoplastic radial flow impellers and diffusers for higher head requirement. No suction and priming problems as it is submerged in water. Its unique bottom suction design ensures effective draining of water almost to the ground level. The motor is of dry type with F class insulation for reliable service. Highly resistant mechanical seal ensures reliability and trouble free service for long life. Single phase pumps are supplied with control box and float switch as default. Each pump is supplied with 15m power cable to eliminate the joint.

Specification
Nominal Diameter Bottom Suction Pumps
Power Range in kW 0.37 – 1.1 kW
Speed in RPM 2900 RPM
Maximum Flow Rate in m 6 m³/h
Maximum Head in Metre 91m
Outlet Sizes in Inches 1¼”
Features
  • Default Float switch to avoid dry running, most reliable mechanical seal
  • Self cooling motor design
  • Corrosion free parts
  • 15m lead out cable to eliminate the joint
Application
  • Residence
  • Utility application in buildings and industries
  • Emptying the sump
  • Gardening and landscape
Literature
E-catalogue
