MS & MP Series

Home > 60 HZ > Waste Water Pumps > MS & MP Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

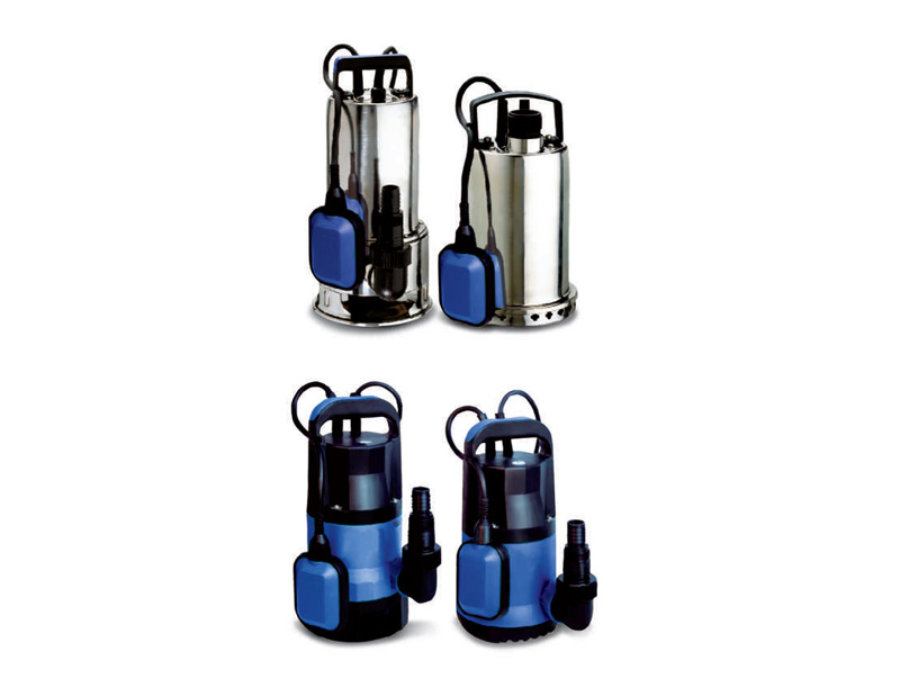

MS & MP Series

MS and MP Series from CRI Fluids are designed to handle waste water from residential and small commercial buildings. They can also be used in pumping sewage water from stock farm and manhole sewer.

Description

Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life.

Specification
Maximum Flow to 53gpm
Head to 34ft
Speed 3450 RPM
Impeller Type Semi Open Impeller
Outlet Size to 1½”
Power to 1.2HP
Liquid Temperature to 104°F
Max Solid Size to 1″
Shaft Seal Mechanical Seal
Material of Construction (MOC) Engineering Thermoplastic
Bearing Lubrication Grease
Maximum Immersion Depth 16ft
Maximum Working Pressure to 1 bar
Features
  • Heavy duty bearings
  • Compact and rigid design
  • Rust free engineering thermoplastic
Application
  • Draining sewage water from hotels, houses, commercial buildings etc.
  • Pumping sewage water from stock farm and manhole sewer
