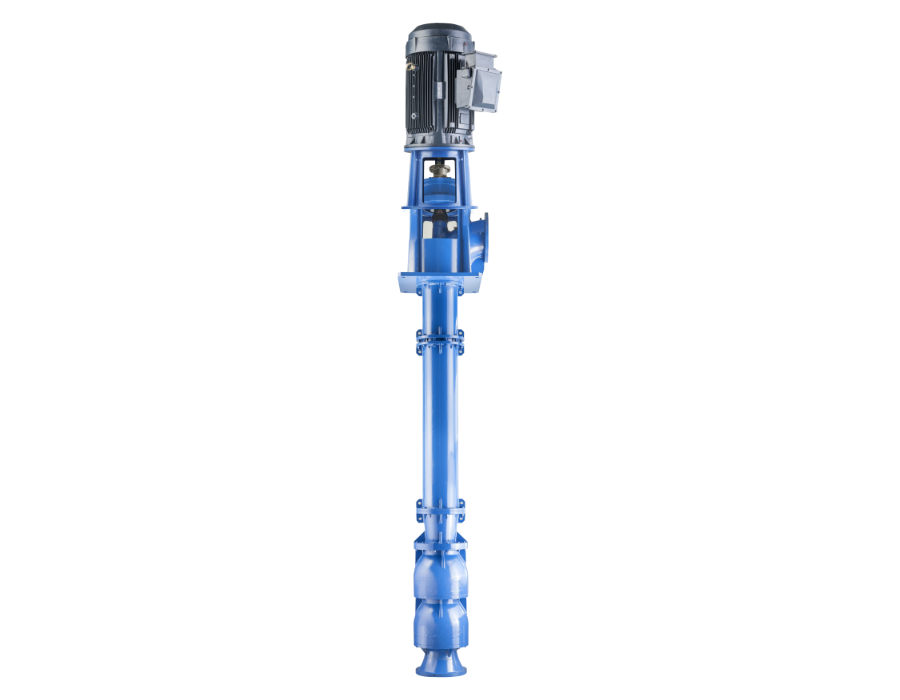

VTP Series
CRI Fluids offers VTP series, vertical turbine pumps that come with different material options and hydraulic ranges. These pumps are designed to be installed in both wet and dry pits. These pumps can be used in varied applications from raw water intake and supply to refinery and fire fighting.
Vertical turbine pumps are single stage or multistage in construction and submerged impellers allow the pump to be started without need of priming. VT pumps are designed to operate without being affected by large fluctuations of the water level. These pumps are supplied with mixed flow or axial flow impeller for higher flow requirement. The transmission shaft in the column pipes are supported with line shaft bearing with self or external cooling arrangement. These pumps can be either installed in wet or dry pit application. Ratchet arrangement provided on coupling to avoid reverse rotation.
| Standard |
Manufacturer Standard |
| Head |
to 656ft |
| Maximum Flow |
to 44028gpm |
| Speed |
720/900/1150/1700/3450 RPM |
| Impeller Type |
Enclosed Impeller |
| Outlet Size |
to 36″ |
| Power |
to 1340HP |
| Liquid Temperature |
to 194°F |
| Max Solid Size |
Not Applicable |
| Shaft Seal |
Gland Packing,
Mechanical Seal |
| Material of Construction (MOC) |
Cast Iron, Bronze & Stainless steel |
| Bearing Lubrication |
Self & External Lubrication |
| Flange Standard |
ANSI |
| Maximum Working Pressure |
to 20bar |
- Different material option
- Wide hydraulic ranges
- Dynamically balanced rotating parts
- Muff coupling as default for shaft
- Optional surface coating for efficiency improvement
- Raw water intake and water supply
- Irrigation
- Main cooling water and makeup water supply in power plant
- Water treatment plants
- Municipal water supply
- Dock yard
- Flood control
- Refinery
- Fire fighting
