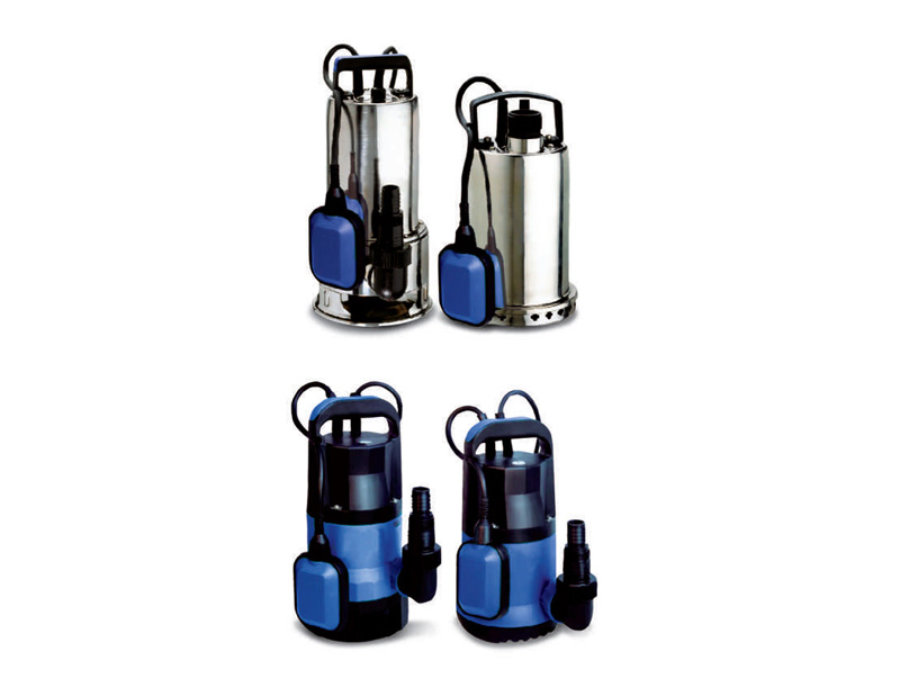

MS & MP Series
Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are avaialble in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel construction.
| Maximum Flow | upto 12m³/h |
| Head | upto 10.5m |
| Speed | 2900RPM |
| Impeller Type | Semi open impeller |
| Outlet Size | upto 40mm |
| Power | upto 1.1kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 25mm |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Engineering Plastic |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 5m |
| Maximum Working Pressure | upto 1 bar |
- Heavy duty bearings, compact and rigid design
- Rust free engineering thermoplastic
- Draining sewage water from hotels, houses, commercial buildings etc.
- Pumping sewage water from stock farm and manhole sewer
