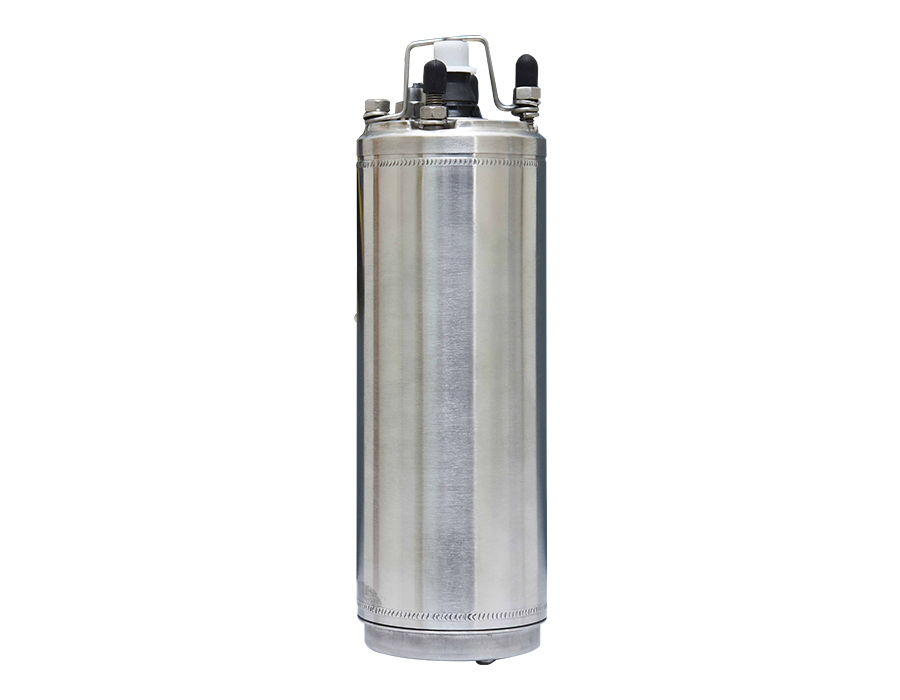

Permanent Magnet Synchronous Motor for Solar Pumps
C.R.I PMSM submersible motors are special type motors made with high-grade stainless steel material. These motors are coupled with 4″ submersible pump ends, they run at synchronous speed without slip and are about 10%-15% more efficient than AC Induction motors of the same rating. PMSM motors are available in different power and voltage ratings.
| Power Range | 0.75kW – 7.5kW |
| Voltage | 80V, 100-120V, 140-160V, 210-230V, 340V, 540V |
| Speed | 3000 rpm |
| Degree of Protection | IP 68 |
| Max. Immersion Depth | NA |
| Maximum Head | NA |
| Maximum Flow | NA |
| Type of Duty | S1 Continuous Duty |
| Outlet Size | NA |
- Eco friendly
- Higher efficiency
- Less maintenance
- More longevity
- Prime mover for 4″ solar pump ends
