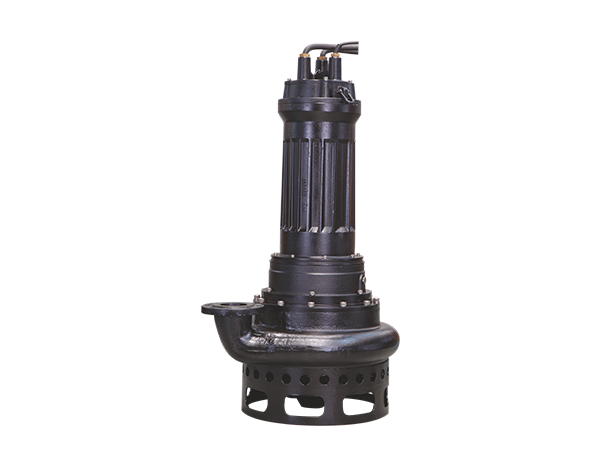

SN series

Description

Slurry submersible pumps are designed for pumping liquid containing solids and abrasive particles. Slurry pump changes in design and construction to adjust to multiple type of slurry which varies in concentration of solids, size of solid particles, shape of solid particles, and composition of solution. Dynamically balanced Hi-Chrome impellers are used for reliable operation which is basically white iron with 25% chromium added to make it less brittle. Slurry pumps are widely used in transport of abrasive solids in industries such as mining, dredging, power and steel.

Specification
Maximum Flow upto 160m³/h
Head upto 34m
Speed 960RPM
Impeller Type Enclosed Impeller
Outlet Size upto 100mm
Power 18 & 25kW
Liquid Temperature upto 40°C
Max Solid Size upto 10mm
Shaft Seal Mechanical Seal
Material of Construction (MOC) CI with 0.3% Cu, Ni and Mo, Hi-Chrome
Bearing Lubrication Grease
Maximum Immersion Depth 20m
Maximum Working Pressure upto 3.4 bar
Features
  • Non clog Hi-Chrome impeller
  • Large free passage
  • Pump with agitator for effective mixing and pumping
  • Dual mechanical seal
Application
  • Mine tailings
  • Power plant ash
  • River and lagoon silt
  • Steel slag
  • Rolling mill scale
  • Sewage and waste water
  • Flood control
  • Contruction dewatering
