ECW Series

Home > 60 HZ > End Suction Pumps > ECW Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

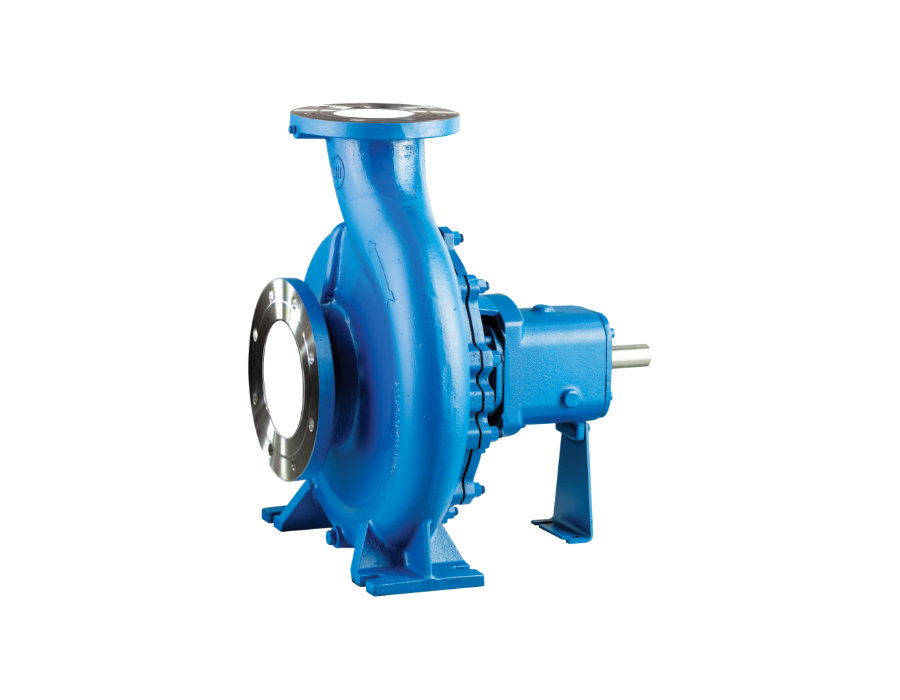

ECW Series

Description

ECW series are single stage, end suction, back pull out, top centreline discharge type. These are offered with different material of construction to handle clear and slight raw water. Dynamically balanced impeller ensures vibration and noise free operation for long life. Mounting and duties are in accordance with EN 733 with DIN flanges suitable for continuous operation.

Specification
Standard EN 733
Head to 524ft
Maximum Flow to 2641gpm
Speed 1700/3450 RPM
Impeller Type Enclosed Impeller
Outlet Size to 6″
Power to 268HP
Liquid Temperature to 194°F
Max Solid Size Not Applicable
Shaft Seal Gland Packing,
Mechanical Seal
Material of Construction (MOC) Cast Iron, Bronze, Stainless Steel & Alloy steel
Bearing Lubrication Grease
Flange Standard DIN
Maximum Working Pressure to 16 bar
Features
  • Back pull out design
  • Mounting dimensions and duties as per EN733 standard
  • Wide hydraulic ranges
  • Pre lubricated sealed bearing ensures long life
Application
  • Water supply
  • Irrigation
  • Pressure boosting
  • Heating, ventilation and air conditioning system
  • Fire fighting systems
  • Circulation and transfer application
  • Utility services in buildings and industries
