4″ Water Filled Rewindable Submersible Motors

Home > 60 HZ > Deep Well Submersible Motors > 4″ Water Filled Rewindable Submersible Motors

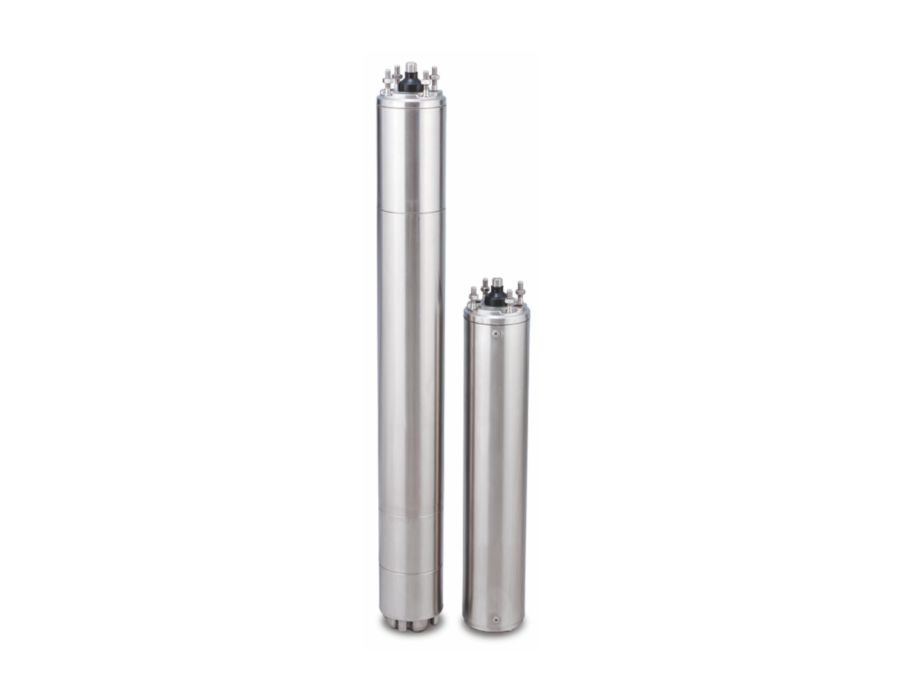

4″ Water Filled Rewindable Submersible Motors

Description

C.R.I. "W series" motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply for continous duty. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.

Specification
Nominal Diameter 4"
Series Water Filled Rewindable Submersible Motors
Power Range (kW) 0.5 - 10HP - Three Phase
Speed in RPM 3450
Method of Starting Direct On Line(DOL)
Versions Three Phase - 230V , 380V, &460V 60Hz
Maximum Down Thrust Load 0.5 - 2.0 HP - 800 lbs, 3.0 - 10 HP - 1500 lbs
Type of Duty S1 (Continuous)
Degree of Protection IP 58
Class of Insulation Y
Max.Temperature of Liquid 86˚F
Minimum Cooling Flow Along the Motor 0.25 ft/sec
Maximum Starts per Hour Single Phase - 20 Times, Three Phase - 12 Times
Available M.O.C Type A & N
Features
  • High efficiency
  • Water lubricated rewindable motor
  • Extremely hardwearing and water lubricated bearings
  • Corrosion resistant stainless steel motor body
  • Can be easily dismantled and repaired
Application
  • Residence
  • Agriculture
  • Gardens
  • Sprinkler systems
  • Fountains
  • Building services
