JTS & JTB Series

Home > 60 HZ > Centrifugal Monoblock Pumps > JTS & JTB Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

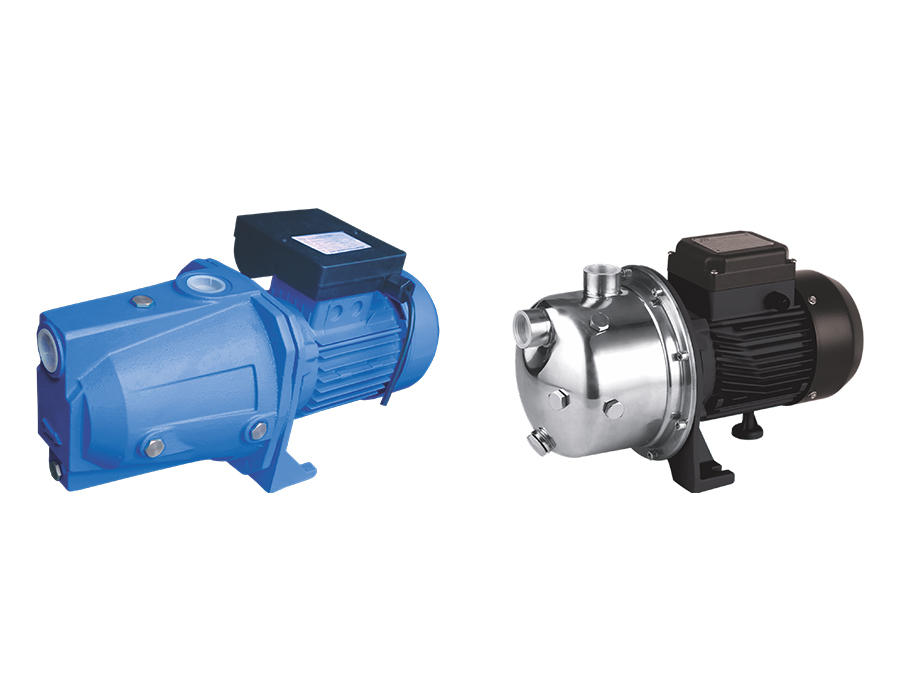

JTS & JTB Series

Description

C.R.I. JT Series pumps are self-priming type supplied with radial flow impeller for shallow well and sump application.These pumps are available in both single phase and three phase power supply and powered by a totally enclosed fan cooled motor. Jet pump’s casing and ejector unit are designed carefully to give the best hydraulic efficiency and suction lift characteristic. The back pull out design facilitates ease of maintenance. JTS series are offered with fully stainless steel pump portion for hygiene application. Single phase pumps are thermally protected.

Specification
Power Range in HP 0.5 – 1.5HP
Speed 3450
Versions Single phase – 115 & 230V, 60Hz , A.C. Supply
Three phase – 230,380 & 460V, 60Hz A.C. supply
Type of Duty S1 Continuous Duty
Degree of Protection IP 55
Class of Insulation     B/F
Maximum Discharge Upto 14 gpm
Maximum Head Upto 171 ft
Max.Suction Lift 23 ft
Sealing Type Mechanical seal
Max.Liquid Temperature Upto 86°F
Max.Ambient Temperature Upto 104°F
Max.Operating Pressure upto 5.2 bar
Flange Standard Manufacturer Standard
Suction Flange Size 1″
Delivery Flange Size 1″
Features
  • High efficiency
  • Compact and rigid construction
  • Back pull out design
  • Single phase pumps are thermally protected
Application
  • Residence
  • Pressure boosting system
  • RO systems
  • Cooling system
  • Washing systems
  • Utility application in industries and buildings
Literature
E-catalogue
