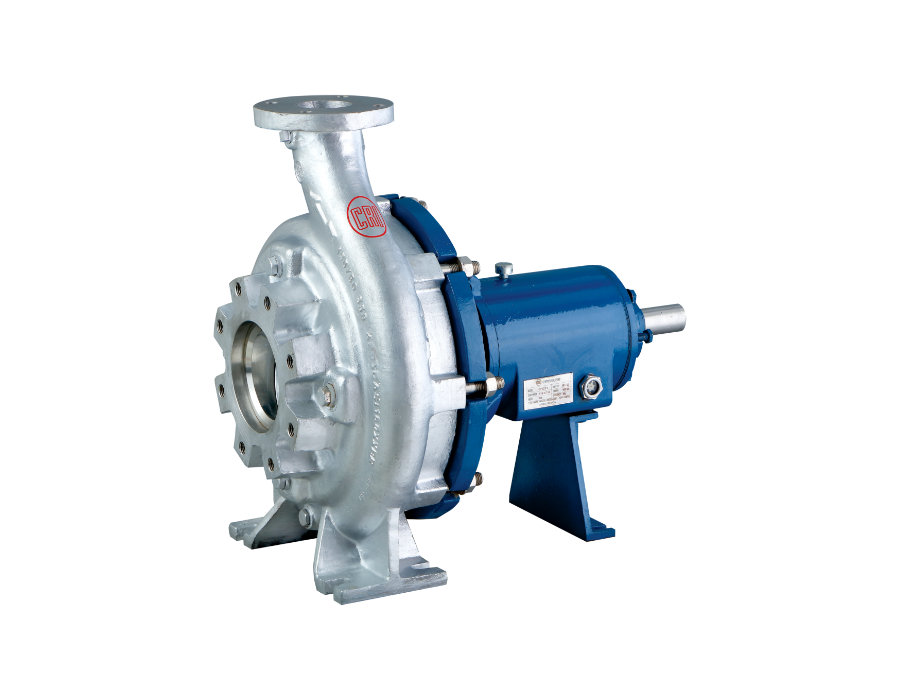

ECP Series

Description

Medium consistency pulp and process pumps are used to handle different type of syrup, molasses, pulp, paper stock, raw water etc and it can be used maximum consistencies upto 8%. Dynamically balanced semi open impeller ensures vibration and noice free operation for long life and replaceable wear plate used to maintain optimum clearance between impeller and wear plate. To maintain impeller clearance external adjustment provision is provided to maintain required efficiency.

Specification
Standard Manufacturer Standard
Head to 311ft
Maximum Flow to 15850gpm
Speed 1150/1700/3450 RPM
Impeller Type Semi Open Impeller
Outlet Size to 14″
Power to 420HP
Liquid Temperature to 194°F
Max Solid Size to 3¾»
Shaft Seal Gland Packing,
Mechanical Seal
Material of Construction (MOC) Cast Iron, Stainless steel & Alloy Steel
Bearing Lubrication Oil
Flange Standard ANSI
Maximum working Pressure to 16 bar
Features
  • Back Pull out Design
  • High Efficiency
  • Non Clog Semi open impeller with Bull Nose ensures that smooth entry of liquid with fibrous Solids.
  • Handle Consistencies upto 8%.
  • External Impeller Adjustments to maintain Optimum Hydraulic performance.
Application
  • Paper Stock & Fibrous Pulp.
  • White, Black & green liquors.
  • Handling food pulp.
  • Non API 610 Chemical, Process & Fibrous Effluents.
  • Low Density Slurry & Sludge
