Packaged Sewage Lifting System

Description

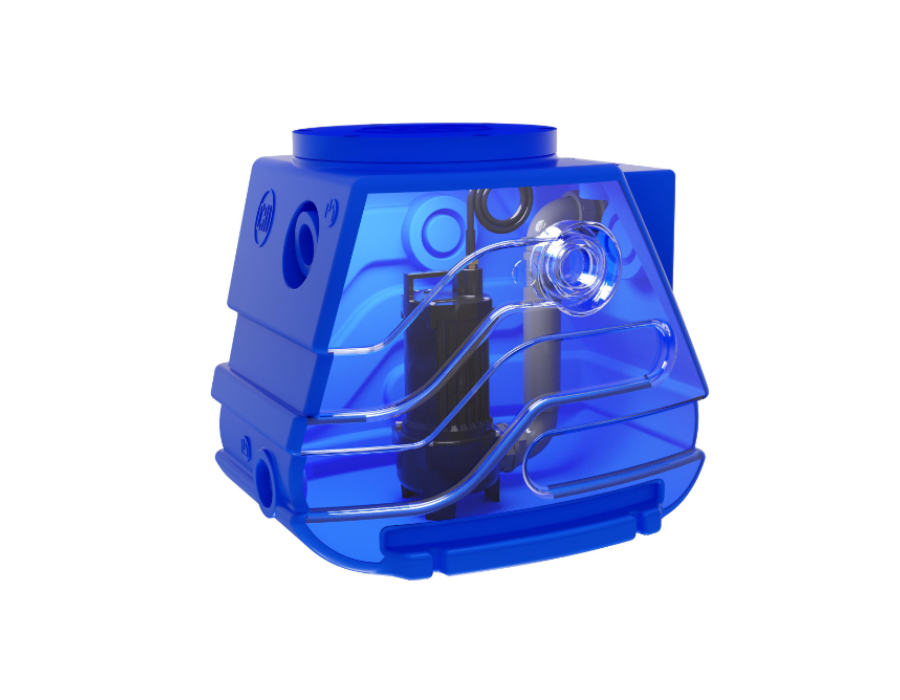

Lifting stations are made with highly reliable, compact polyethylene tank suitable for collecting and pumping clear, rain and wastewater from washing machine, sinks, drains and WC’s etc. These tanks are installed at a lower level than the sewer. The smaller capacity tanks are generally used in residential and large tanks are installed in multifamily residences and industries. Lifting station can be equipped with upto 2 pumps for system to avoid frequent on/off. The pump and float switches are installed inside the tank for silent operation. Sealings are made by means of O rings and gaskets for leak free operation. Wastewater intake ports are provided in sides and top portion of the tank and discharge port is provided in top side. The products we offer minimize installation time which in-turn reduces installation costs. Since the products are made with superior material it will suit any type of landscape.

Specification

OPERATION RANGE	50Hz
Tank Capacity in litres	100 litres
No of Pumps	1pump
Maximum Temperature	40°C
Intake Pipe Sizes	50mm
Discharge Pipe Size	50mm
Suitable Pump Models	0.65 kW – GB-CV06CT & GB-CV06CM-A 0.80 kW – GB-CV08DT & GB-CV08DM-A 0.80 kW- GTCV07-CT & GTCV07-CM-A

Application

Sewage lift stations for residence, hotels, hospitals, restaurants, gated communities, commercial buildings, etc.
