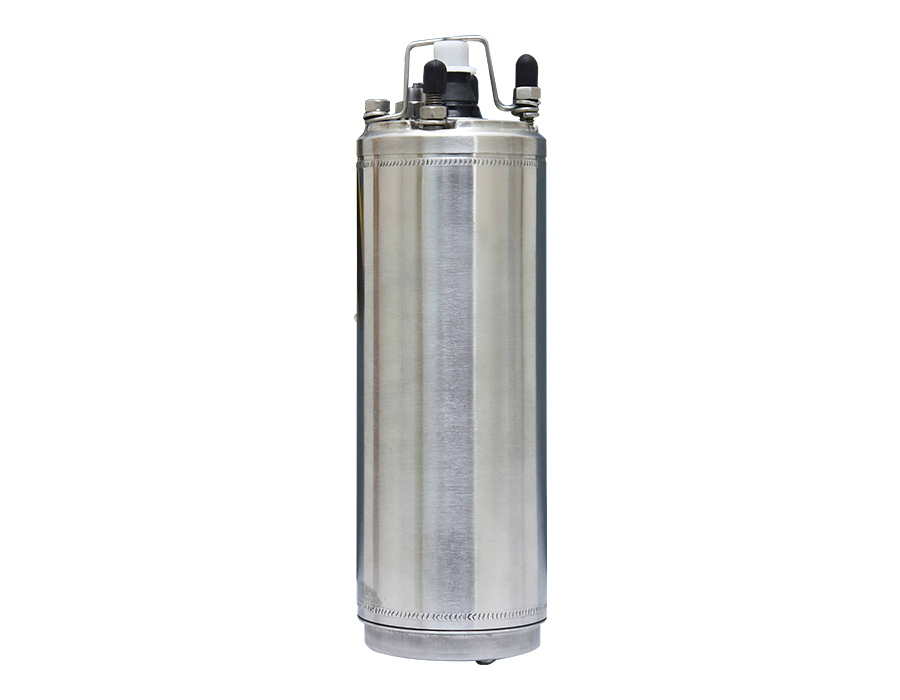

Permanent Magnet Synchronous Motor for Solar Pumps
C.R.I PMSM submersible motors are special type motors made with high-grade stainless steel material. These motors are coupled with 4″ submersible pump ends, they run at synchronous speed without slip and are about 10%-15% more efficient than AC Induction motors of the same rating. PMSM motors are available in different power and voltage ratings.
| 功率范围 | 0.75kW – 7.5kW |
| 电压 | 80V, 100-120V, 140-160V, 210-230V, 340V, 540V |
| 转速 | 3000 rpm |
| 防护等级 | IP 68 |
| 最大浸没深度 | NA |
| 最大扬程 | NA |
| M最大流量/td> | NA |
| 工作方式 | S1 连续工作 |
| 出口尺寸 | NA |
- 环保的
- 更高的效率
- 更少的维护
- 更长寿
- 4″ 太阳能泵端原动机
