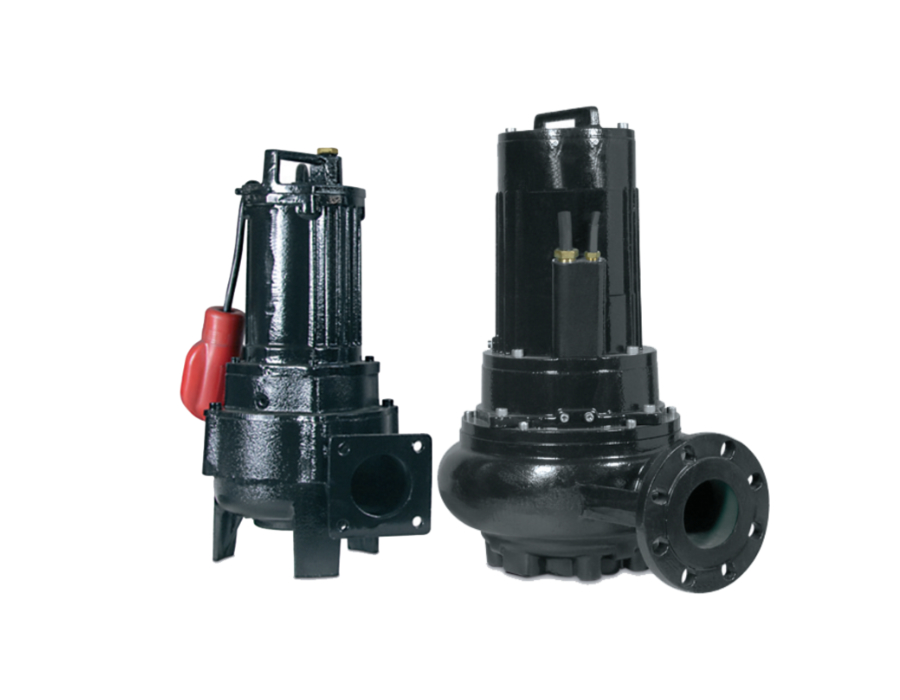

GB series
GB Series pumps are equipped with vortex impeller. The benefit of a vortex impeller over a channel impeller is the minimized risk of clogging. A vortex impeller is also a better choice and pumped liquid has a high content of sand. These pumps have large free passage up to 3½” in diameter suitable for lifting of sewage liquid, civil waste and industrial waste water containing solids and viscos materials, heavy muds or fermented sludge.
| Maximum Flow | to 500gpm |
| Head | to 198ft |
| Speed | 1700/3450 RPM |
| Impeller Type | Vortex |
| Outlet Size | to 3″ |
| Power | to 37.3HP |
| Liquid Temperature | to 104°F |
| Max Solid Size | to 2½” |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Cast Iron with 0.3% Cu, Ni and Mo |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 66ft |
| Maximum Working Pressure | to 6.5bar |
- Minimized risk of clogging & minimum wear and tear
- Large free passage
- Thermal protection and moisture sensor in specific ranges
- For pumping sewage water, civil waste and industrial waste water containing solids and viscous materials, heavy muds, raw or fermented sludge
