Well Point and Dewatering Pumps – WD Series

Home > 60 HZ > Engineered Pumps > Well Point and Dewatering Pumps – WD Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

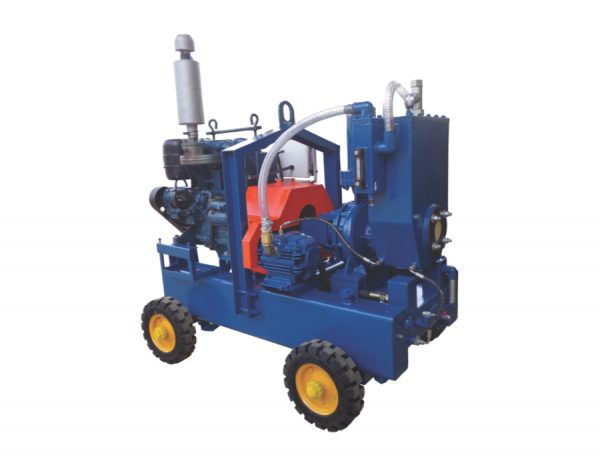

Well Point and Dewatering Pumps – WD Series

Description

WD series skid mounted well point and general-purpose dewatering pumps are designed to handle raw water, muddy water, sewage and liquid with semi solids. These pumps are equipped with vacuum pump and priming tank for automatic self-priming and re-priming action. The fuel tank is designed to give uninterrupted fuel supply for 24 hours operation. These pumps are offered with off highway four-wheel solid rubber tyres. The custom-made double mechanical seal in pump provides perfect sealing and leak free operation. Oil bath type stuffing box ensure the durability of mechanical seal and prevents dry run during initial start-up.

Specification
Standard Manufacturer Standard
Head to 115ft
Maximum Flow to 2200gpm
Speed 1700 RPM
Impeller Type Enclosed Impeller
Outlet Size 4″, 6″ & 8″
Power to 65HP
Liquid Temperature to 122°F
Max Solid Size to 1″
Shaft Seal Mechanical Seal
Material of Construction (MOC) Cast Iron & Stainless steel
Bearing Lubrication Oil
Flange Standard ANSI
Maximum Working Pressure to 16 bar
Features
  • Customized engine option with air cooled or water cooled engines
  • Diesel tank for 24 hours fuel back up
  • Double face mechanical seal for perfect sealing
  • Inbuilt automatic self-priming
  • High way and off high way trolley option
Application
  • Municipal utility
  • Flood control
  • Emergency pumping
  • Marine
  • Dewatering in construction and mining
