I-Prez Series

Home > 50 Hz > Water booster pump > I-Prez Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

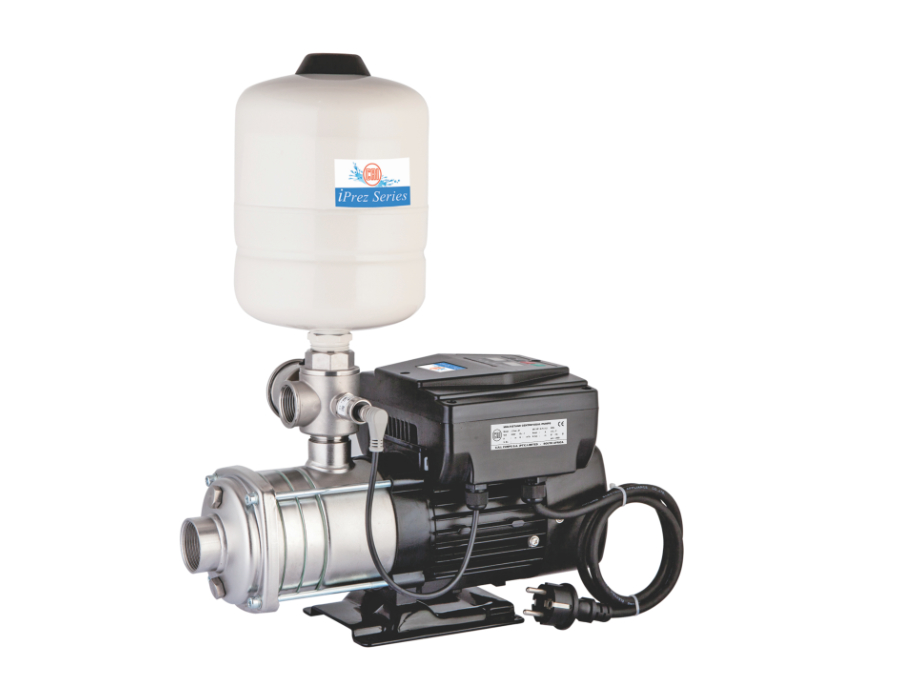

I-Prez Series

Description
C.R.I i-Prez Series are basically domestic pressure boosting system with built-in variable speed for constant pressure in pipe line. The pressure transducer in this system monitors un-interrupted pressurized water supply at any time. i-Prez also protects the system from dry run, over loading, unbalanced voltages, short circuit etc. The system comprises of Horizontal Multistage Pump, VSD, 5 Way connector with built in NRV, pressure tank, Pressure gauge & pressure transducer.
Specification
Power Range(kW) 0.75kW – 2.2kW
Speed 2900 rpm
Versions Input voltage : Single Phase 220V Output voltage : Three Phase 220V
Duty S1 Continuous
Degree of Protection IP 54
Class of Insulation B/F
Maximum Discharge Upto11 m³/h
Maximum Head Upto 68m
Shaft Seal Mechanical seal
Max.Liquid Temperature 70˚C
Max.Ambient Temperature 40˚C
Max.Opearting Pressure 9 bar
Flange Standard Manufacturer standard
Outlet Size in mm DN25 to DN40
Features
  • High efficiency
  • Stainless steel wetted parts
  • Automatic operation
  • Soft start ensures smooth operation and increase the life of pump set
  • Plug & play type
Application
  • Pressure boosting system
  • Utility water supply in residences, villas and industries
  • Car Washer
  • Gardening
Literature
E-catalogue
