A.C. Induction Motors

Home > 50 Hz > A.C. Induction Motor > A.C. Induction Motors
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

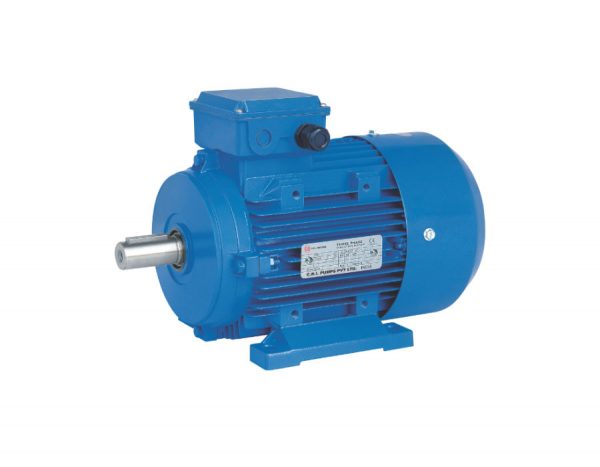

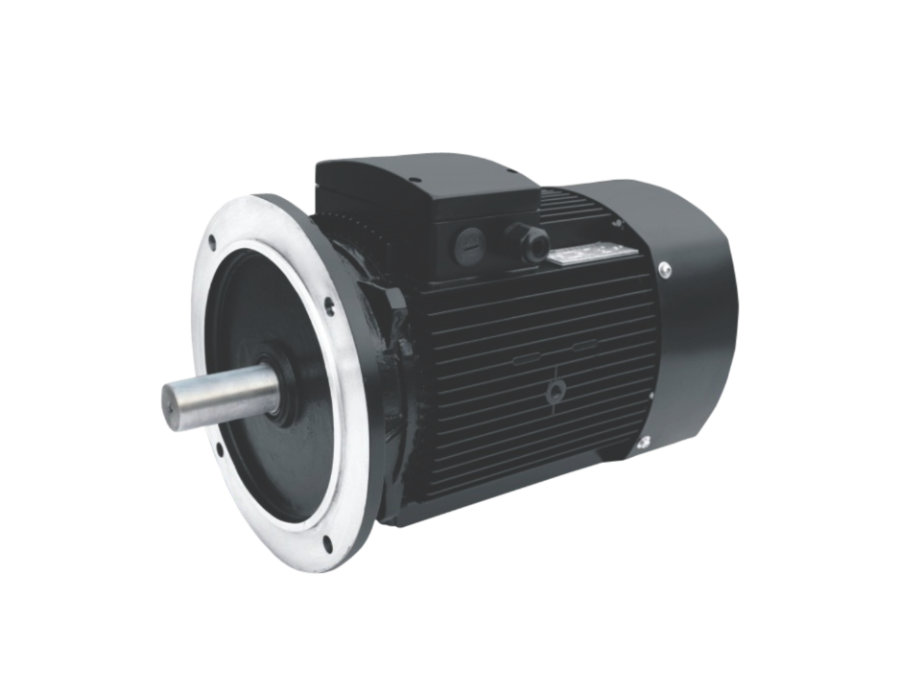

A.C. Induction Motors

Description

A Comprehensive range of induction motors in standard and premium efficiency designs are suitable for wide range of applications in industries. Stator is made of low watt loss steel laminations suitable for continuous and reliable operation. Dynamically balanced rotor ensures vibration and noise free operation. The varnish impregnated windings are made of high grade enamelled copper wire, construction of motor frames and usage of quality materials results in high performance and low temperature rise thereby increasing the life cycle of motor. Motors are available with standard and premium efficiency levels as per customer requirements.

Specification
Mounting Type Foot / Flange / Foot cum flange /Face Mounted motors (B3, B5, B35, B14)
Power Range in kW 0.37 to 2.2, – Single phase
0.75 to 315 kW – Three phase (IE2 & IE3)
Rated Voltage 380/400/415V, 3PH
230V, 1PH
Frequency 50Hz
Pole 2/4/6 Pole
Connection CSCR, 1PH
DOL /SD, 3PH
Ingress Protection IP 55
Class of Insulation Class – F
Features
  • Varnishing by Vacuum Pressure Impregnation(VPI) process
  • Thermister and space heater on higher kW motor
  • Canopy on request
Application
  • To be coupled with pump and other industrial equipments
