4” PMA’s Series

Home > 60 HZ > Deep well Submersible pumps > 4” PMA’s Series
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

4” PMA’s Series

Description

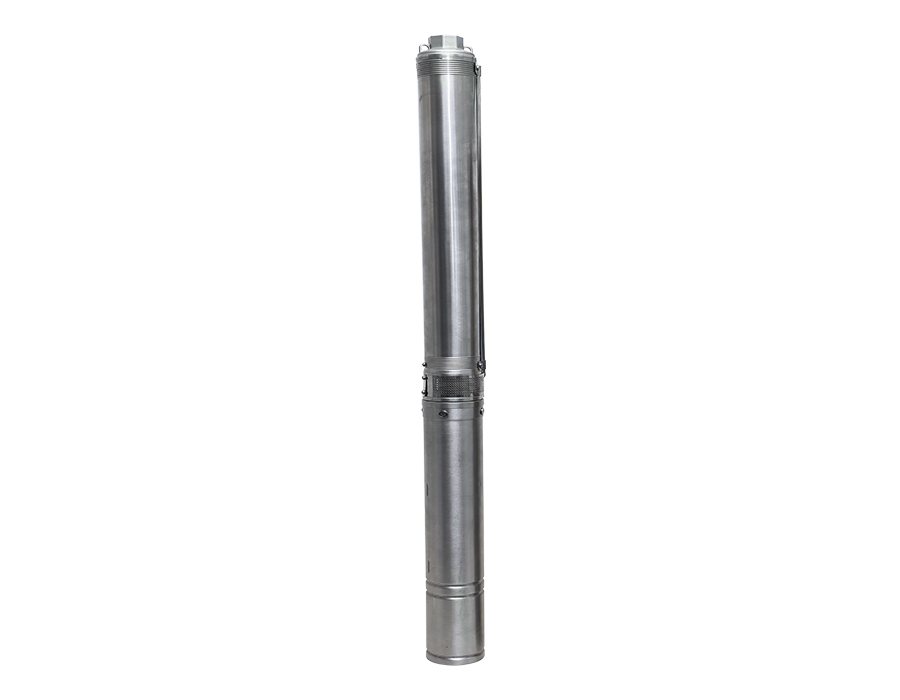

C.R.I. 4” PMA’s are designed for pumping liquid from deep wells. All the metal and non-metal components that come into contact with the liquid are made of stainless steel and food grade engineering thermoplastic. The optimized hydraulic design offers maximum efficiency at deeper installation. Floating impeller design can handle little higher sand than the normal pump and reduce the down thrust load that is transferred to motor. The pump is firmly coupled to a 4” resin filled encapsulated submersible motor for continuous duty. Dynamically balanced rotor and quality bearing ensures vibration and noise free operation and thereby increase the life cycle of pumpset

Specification
specification 4″ PMA’s
Power Range in HP 0.5HP – 1.5HP
Speed in RPM 3450 rpm
Maximum Flow Rate in US gpm Upto 30 gpm
Maximum Head in ft Upto 790 ft
Outlet Sizes in Inches 1″
Features
  • High efficiency
  • Stainless steel non return valve and suction inter connector
  • Floating impeller for better efficiency
  • Can be easily dismantled and repaired
Application
  • Residence
  • Gardens
  • Sprinkler systems
  • Fountains
  • Building services
Literature
E-catalogue
