Peripheral pumps

Home > 60 HZ > Centrifugal Monoblock Pumps > Peripheral pumps
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

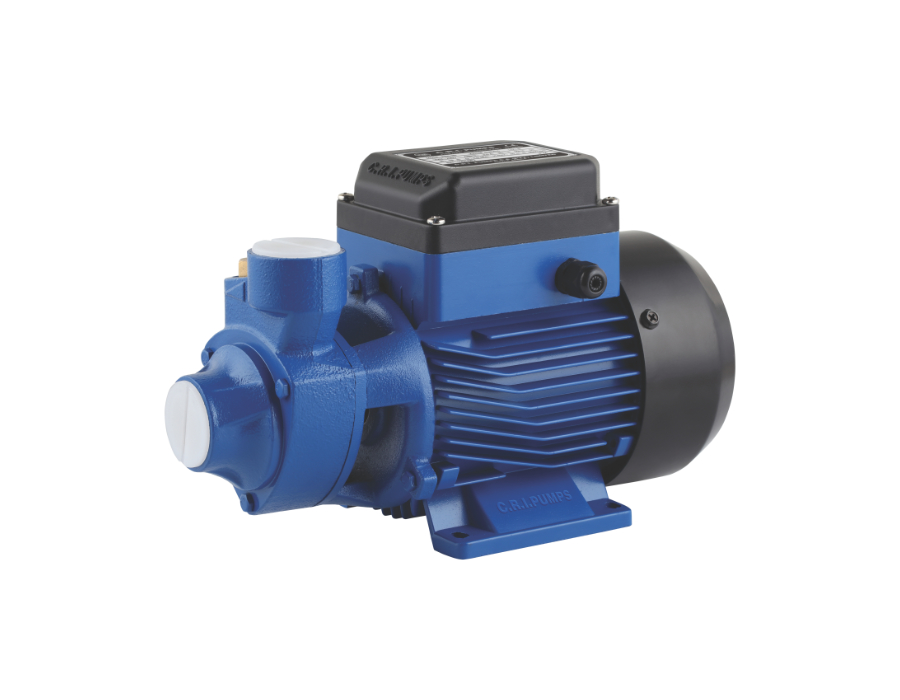

Peripheral pumps

Description

C.R.I. Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eliminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.

Specification
Power Range in HP 0.5 & 1.0 HP
Speed 3450
Versions Single phase – 115 & 230V, 60Hz, A.C. Supply
Type of Duty S1 Continuous Duty
Degree of Protection IP 54
Class of Insulation     B
Maximum Discharge Upto 10.9 gpm
Maximum Head Upto 203 ft
Max.Suction Lift 23 ft
Sealing Type Mechanical seal
Max.Liquid Temperature Upto 86°F
Max.Ambient Temperature Upto 104°F
Max.Operating Pressure upto 6 bar
Flange Standard Manufacturer Standard
Suction Flange Size 1″
Delivery Flange Size 1″
Features
  • Silent operation
  • Sturdy and compact
  • Thermally protected motor
Application
  • Residence
  • Gardens
  • Sprinkler systems
  • Fountains
Literature
E-catalogue
