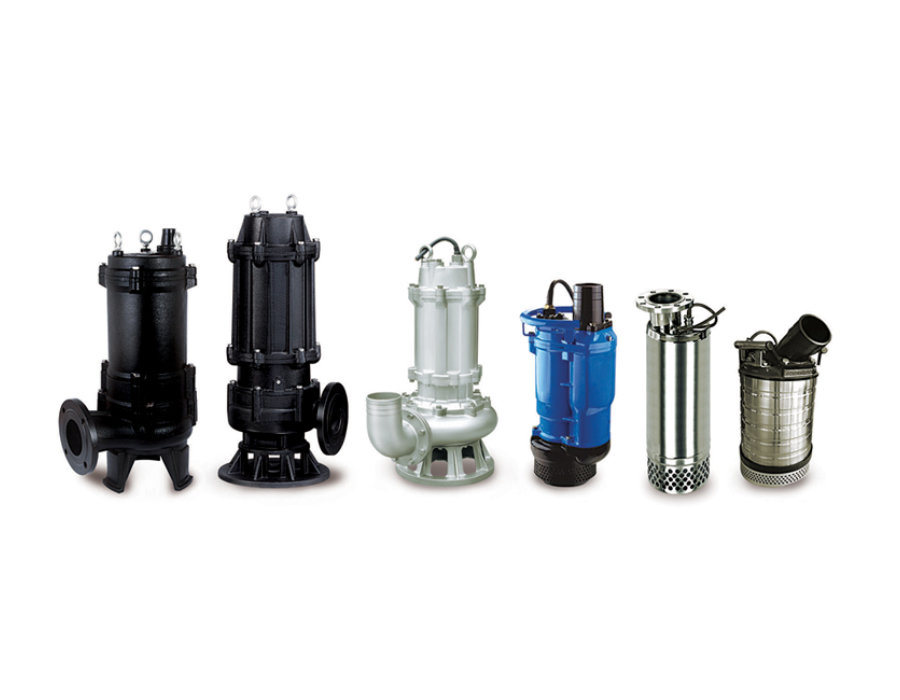

SM, SMC & SH Series
Medium waste water pumps are designed for pumping waste water with solids, mud, raw water and fermented sewages. These motors are of dry type with F class insulation for reliable service and pumps are offered with different type of impellers such as semi open and enclosed impeller with dual mechanical seals ensure reliability and trouble-free service for long life.
| Maximum Flow | upto 780m³/h |
| Head | upto 62m |
| Speed | 1450/2900RPM |
| Impeller Type | Enclosed / Semi open impeller |
| Outlet Size | upto 250mm |
| Power | upto 37kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 55mm |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Cast Iron |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 5m |
| Maximum Working Pressure | upto 6.2 bar |
- Large free passage
- Non clog impeller
- Inbuilt thermal protection and moisture sensor in specific ranges
- For pumping sewage and waste water, rain and storm water and industrial waste water
