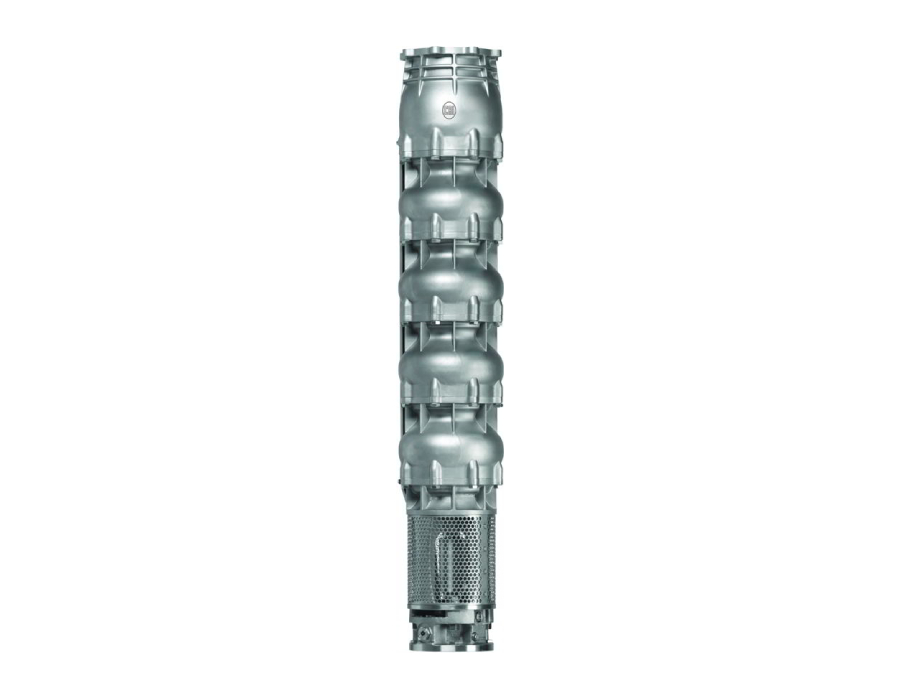

8″ Micro Cast Stainless Steel Grand Series
C.R.I. Micro cast stainless steel deep well bore hole submersible pumps are single or multistage type supplied with mixed flow impellers for higher flow and head requirement. These pumps are made up of corrosion resistant stainless steel material for long life. The pump shaft is supported by radial bearing on each casing / bowl for prolonged life and trouble free operation. And also, we provide neck / wear ring on casing to maintain close clearance for better efficiency and to minimise the wear and tear. Built in check valve prevents back flow and reduces the risk of water hammer effect. All mounting dimension of pumps are in accordance with NEMA standards.
| Nominal Diameter | 8″ |
| Power Range | 5.5 – 150kW |
| Flow Range | 10 – 180m³/h |
| Head Range | 10 – 550m |
| Outlet size | 5″ |
| Speed | 2900rpm |
- High efficiency
- Wide hydraulic ranges
- Corrosion resistant stainless steel pump components
- Radial bearing support in each casing.
- Water supply
- Agriculture
- Commercial building services
- Fire fighting
- Sprinkler / Pivot Irrigation system
- Construction & mining De-watering
- Fountain
- Industries
