Automatic Pressure Booster Systems

Home >  50 Hz >  Pressure Boosting System >  Automatic Pressure Booster Systems
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

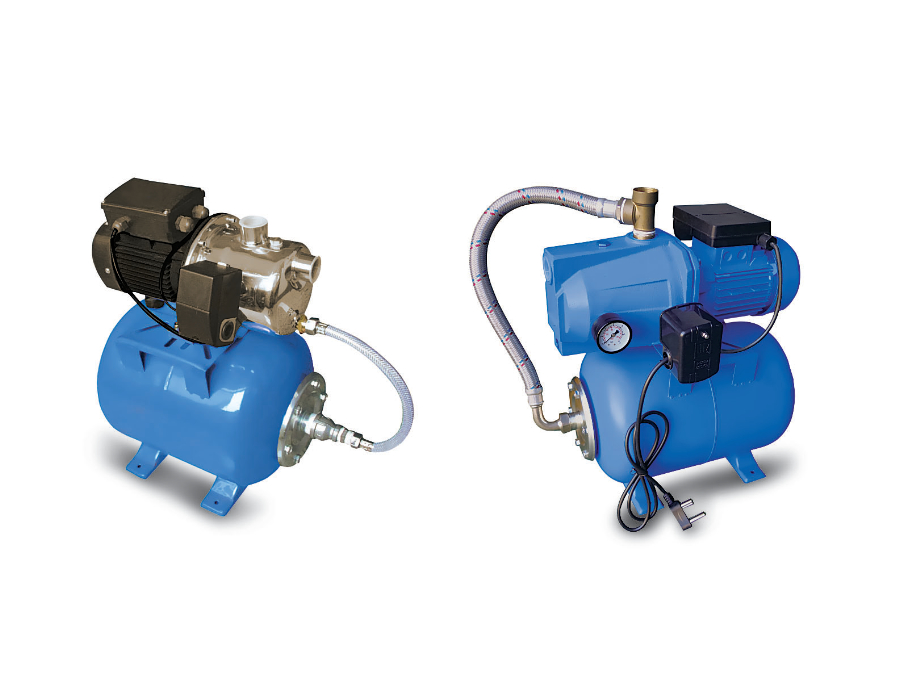

Automatic Pressure Booster Systems

Description
C.R.I. automatic pressure booster system comprises of Self priming Jet pump (JTS / JTB – Series), Pressure tank, Pressure switch & other accessories designed indigenously for delivering optimal performance. This system eliminates the need of over-head tanks & float switch. The electro mechanical control device switches ON & OFF the pump automatically whenever the pressure reaches the minimum and maximum preset levels. It maintains uniform pressurized water in the pipelines to meet the demand.
Specification
Power Range(kW) 0.55 kW – 0.75 kW
Speed 2900 rpm
Versions “Single phase – 230V, 50Hz, A.C. Supply, Three phase – 380-415V, 50Hz A.C. supply”
Type of Duty S1 Continuous Duty
Degree of Protection IP 44 / IP 54 / IP 55 (Optional)
Class of Insulation B/F
Maximum Discharge Upto 6 m³/h
Maximum Head Upto 48 m
Max.Suction Lift Upto 7 m
Sealing Type Mechanical seal
Max.Liquid Temperature 30°C
Max.Ambient Temperature 40°C
Max.Operating Pressure 4.8bar
Flange Standard Manufacturer standard
Suction Flange Size in mm 25 & 32
Delivery Flange Size in mm 25
Features
  • High efficiency
  • Compact and rigid construction
  • Back pull out design
  • Single phase pumps are thermally protected
Application
  • Residence
  • Pressure boosting system
  • Cooling system
  • Washing systems
  • Utility application in industries and buildings
  • RO Systems
Literature
E-catalogue
