Flexi Hose

Description

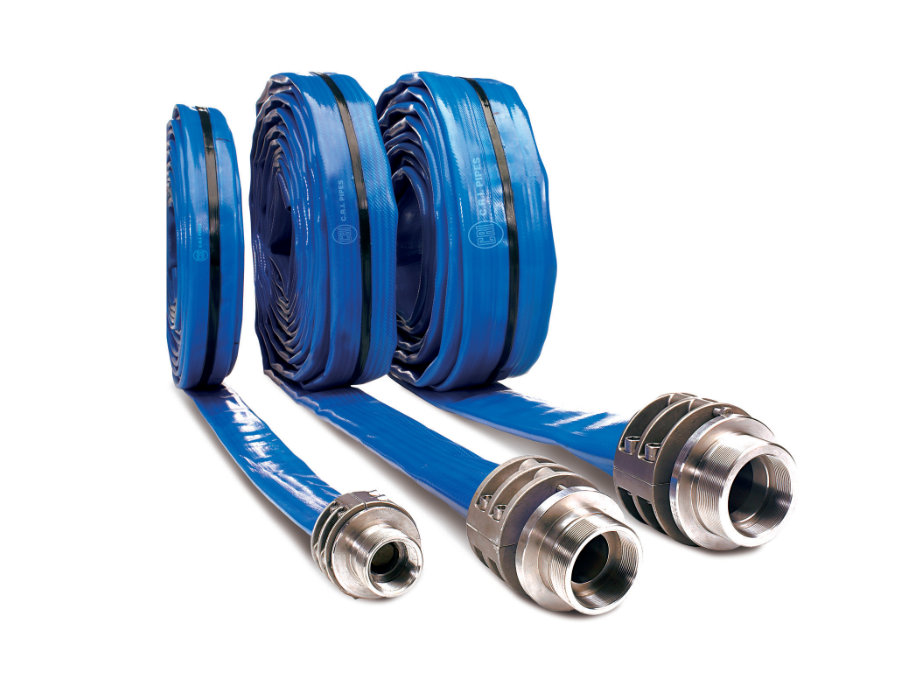

Flexideep is a flexible rising main system used for ground water pumping. Flexideep is technologically superior and right alternate to the conventional type steel / GI pipes. Installation or removal of steel / GI pipes is comparatively time consuming and laborious.

Specification

Nominal Dia. In Inch	1¼, 2,3,4,5,6
Types of Pipes	Medium & Standard
Max. Working Pressure	26 bar
Maximum Installation Depth	258 m
Maximum Recommended Flow	270 m³/h
Maximum Liquid Temperature	-40 C to +50 C

Features

Made of Polyether Polyurethane with high tenacity polyester textile internal reinforcement
No corrosion
No scale
Less weight
Expansion during pumping minimizes friction loss
Easy to install and remove
Low installation and maintenance cost
Longer life span

Application

For pumping Borehole water to the ground
