8” Water Filled Rewindable Submersible Motors

Home >  50 Hz >  Deep Well Submersible Motors >  8” Water Filled Rewindable Submersible Motors
Request a Quote

Request a Quote

  • By continuing you agree to CRI Terms & conditions and privacy policy
  • This field is for validation purposes and should be left unchanged.

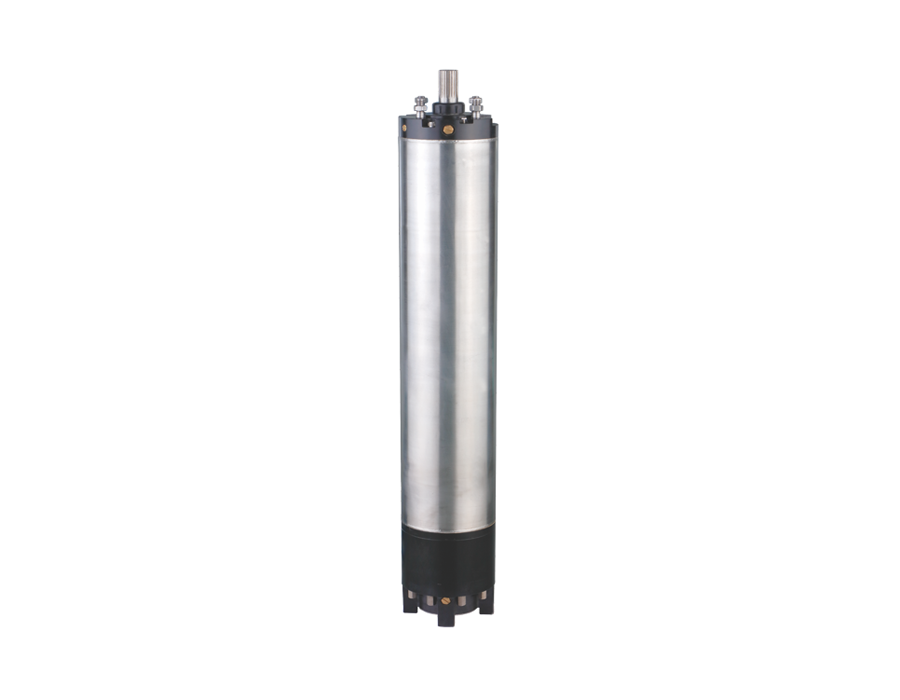

8” Water Filled Rewindable Submersible Motors

Description

C.R.I. “W series” motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply and suitable for both normal & high temperature applications. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.

Specification
Nominal Diameter 8″
Series Water Filled Rewindable Submersible Motors
Power Range kW Three Phase : 37 – 110 kW
Speed 2900 rpm
Versions Three Phase : 380V – 415V, 525V, 50Hz
Method of Starting Direct On Line (DOL), Star Delta (SD)
Maximum Down Thrust Load 45500N
Type of Duty S1 (Continuous)
Degree of Protection IP 68
Class of Insulation Y
Max.Temperature of Liquid Standard – 30˚C , High Temperature – 50˚C
Minimum Cooling Flow Along the Motor 0.5 m/sec
Starts per Hour 12 Times
Available M.O.C Type B,S,T
Features
  • High efficiency
  • Water lubricated rewindable motor
  • Corrosion resistant stainless steel motor body
  • Extremely hardwearing and water lubricated bearings
  • Special design for hot water
  • Can be easily dismantled and repaired
Application
  • Water supply
  • Industries
  • Agriculture
  • Commercial buildings
  • Pressure boosting
  • Water transfer
  • Sprinkler and pivot irrigation system
  • Construction & mining De-watering
  • Fountain
Literature
E-catalogue
